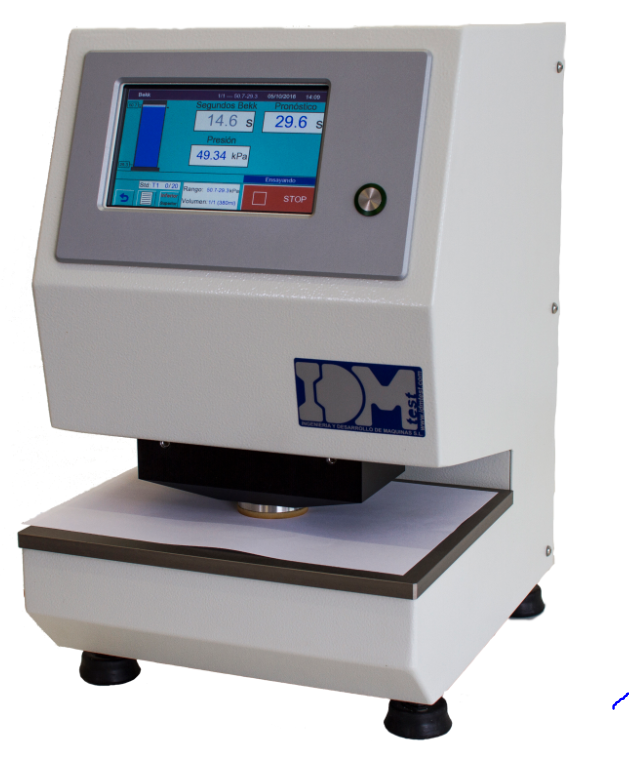

Bekk roughness 1 head tester PTA

  •   Novilog
  •   Made in Europe

For measuring the smoothness of the papers according to Bekk method

  Download the leaflet
  • 170307
  • ISO 5267
  • TAPPI T479
  • DIN 53107

    • Product description

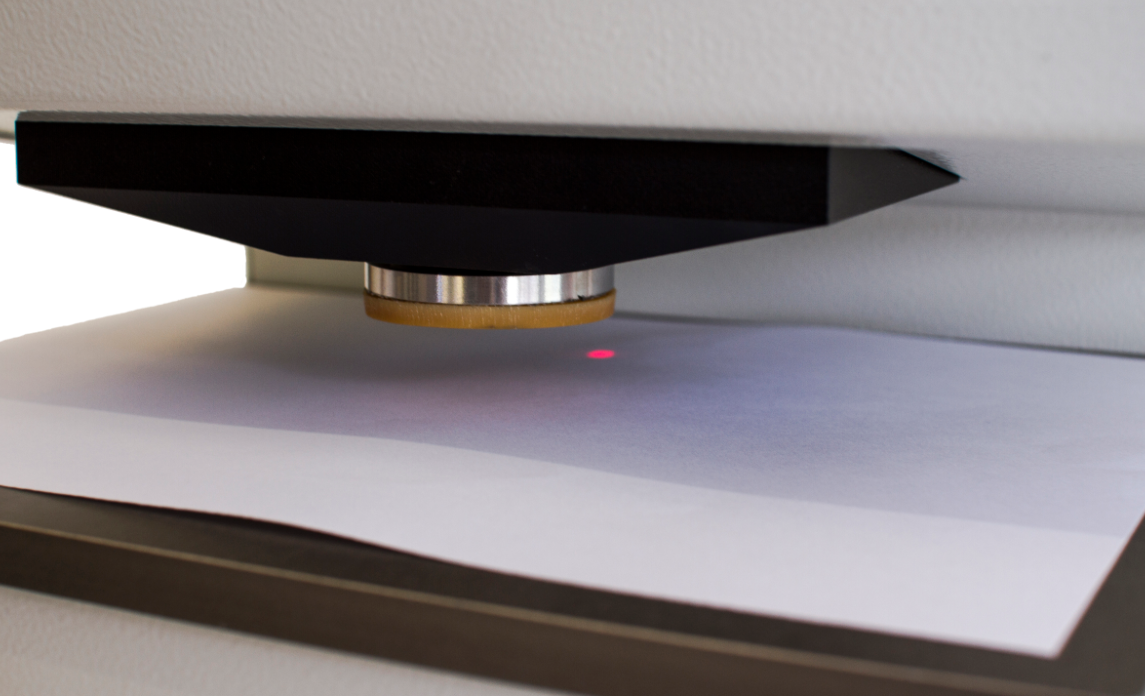

    The sample is placed below the measuring head. On pushing the start button, the 10 kg weight lowers onto the sample and helps to hold it tight to the glass plate. The built-in vacuum pump evacuates the selected tank to a vacuum of -50.7 kPa. Dependent on the surface roughness of the sample, atmospheric air is drawn in between the glass plate and the sample. The time taken for the vacuum to reach -48.0 kPa (res. 29.3 kPa) is displayed in BEKK seconds. Ten seconds after the test has started a preview is displayed to give an estimation
    of the result in advance.

    Technical specifications

    General data
    • Automatic tester with 3 selectable working volumes: +380ml (1:1) - 38ml (1:10) - 19ml (1:20).
    • Colour touch screen and industrial PC included.
    • Integrated vacuum pump.
    • Automatic detection of the sample.
    • Large space testing area.
    • RS232 & USB connections to Novilog
    Log in
    Electricity: 110-230V
    Compressed air: 400 600 KPa
    Weight and dimensions Packaging
    38 Kg
    27 x 68 x 60 cm ( W x D x H)
    Product weight and dimensions
    23 Kg
    Scope of delivery
    • Bekk roughness 1 head tester PTA
    • Operating manual
    Interested in this product ?
    Do not hesitate to ask for a quote
