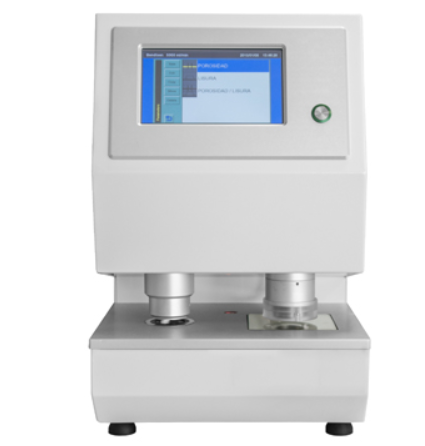

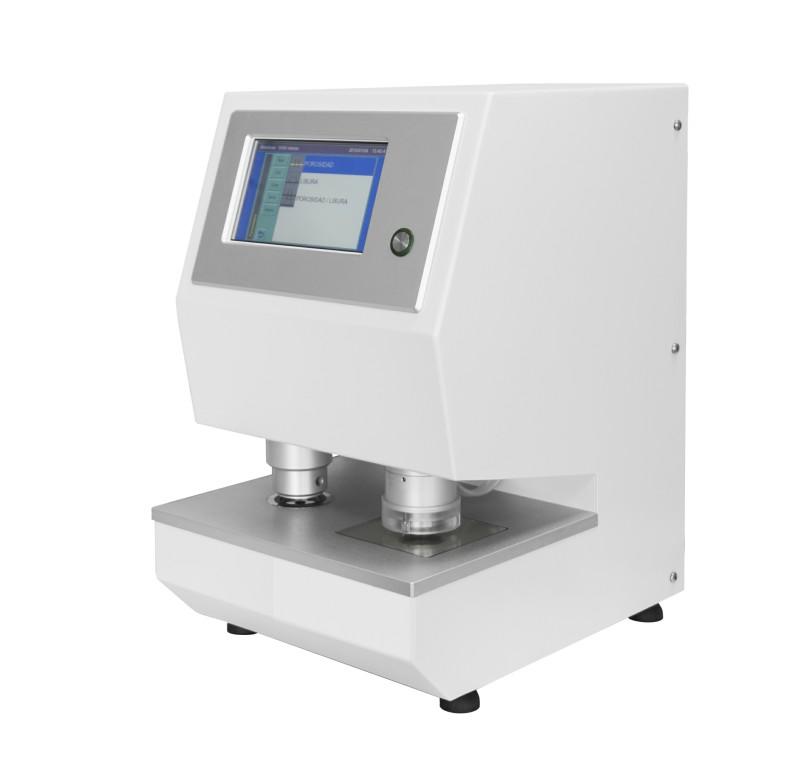

Bendtsen Roughness & Porosity

  •   Novilog
  •   Made in Europe

To measure the air permeability and surface roughness according to Bendtsen method

  Download the leaflet
  • 170218
  • 170219
  • 170220
  • ISO 8791-1
  • ISO 8791-2
  • ISO 5636-1
  • ISO 5336-3
  • SCAN P21
  • SCAN P84
  • DIN 53108
  • BS 4420

    • Product description

    Surface roughness :
    The operator places the sample below the measuring head. By pushing the start button, the measuring head lowers onto the sample and gently clamps it. The test starts. As soon as the preset flow rate (e.g.1,47 ml/min) is stable, the measuring value is displayed. The test time is adjustable from 1-40 seconds. After test performance, the sample is released. The measuring head returns to its initial position and the device is ready for further measurements.

    Air permeability :
    The operator places the sample below the measuring head. By pushing the start button, the measuring head lowers onto the sample and gently clamps it. Air flows through the sample at a selected pressure (e.g.1,47 KPa). As soon as the preset flow rate is stable, the measuring value is displayed. The test time is adjustable from 1-40 seconds. Gurley values are calculated according to the standard and are displayed in Gurley seconds by default.

    Technical specifications

    General data
    • Fully automated measuring cycle
    • Flow rate of 25 – 5000 ml, other flow rates upon request

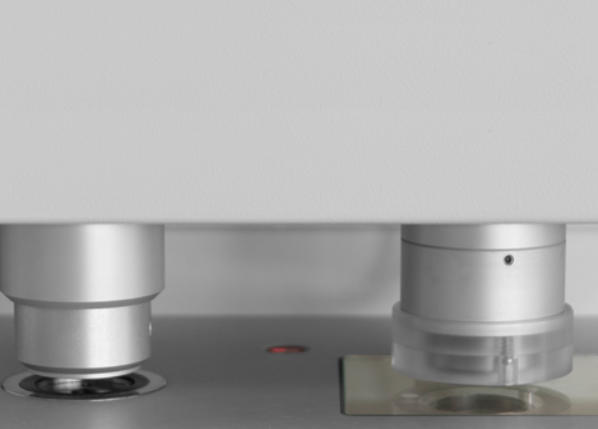

    • Up to 2 measuring heads: roughness top and air permeability
    • Test pressure selectable acc. to standard: 0.74 kPa, 1.47 kPa, 2.20 kPa
    • Stabilizing time selectable between 1 – 40 sec
    • Statistics with graphs, max, min, mean, standard deviation
    • Photocell detection of the sample, automatic start of the measurement
    Log in
    Electricity: 110-230V, 50-60Hz
    Compressed air: 400-600 kPa
    Weight and dimensions Packaging
    1 head - 38 Kg
    27 x 68 x 60 cm (W x D x H)
    Product weight and dimensions
    1 head - 23 Kg
    Scope of delivery
    • Bendtsen apparatus 1 head or 2 heads
    • Operating manual
    Interested in this product ?
    Do not hesitate to ask for a quote
