Double wheel cutter

  •   Noviprofibre
  •   Made in France

Strip cutter for the preparation of paper, or board, samples for tensile tests.

  Download the leaflet
  • N13XX
  • ISO 1924
  • ISO 5626
  • ISO 9895
  • ISO 12625
  • TAPPI T456
  • TAPPI T494
  • TAPPI T549

    • Product description

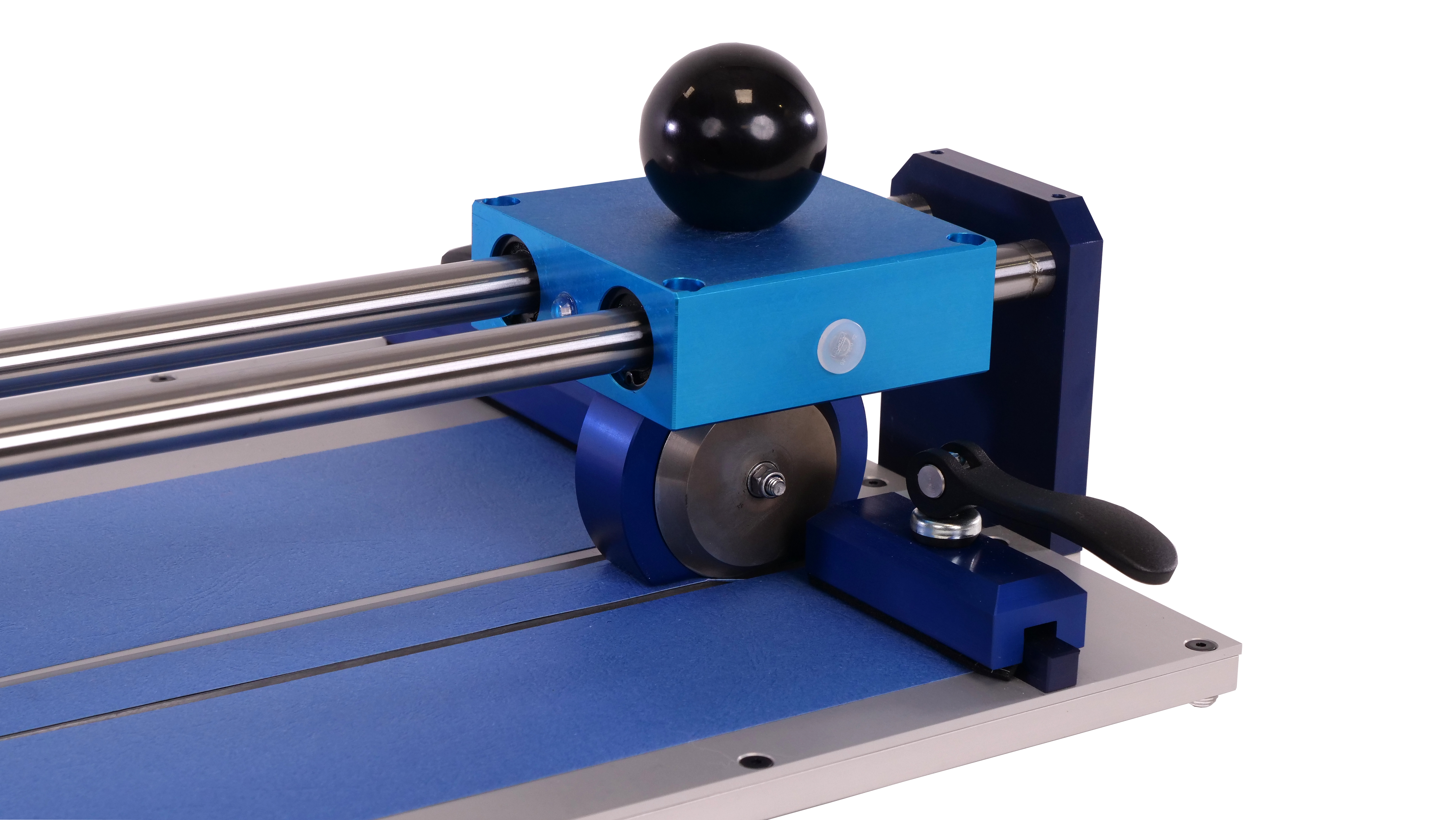

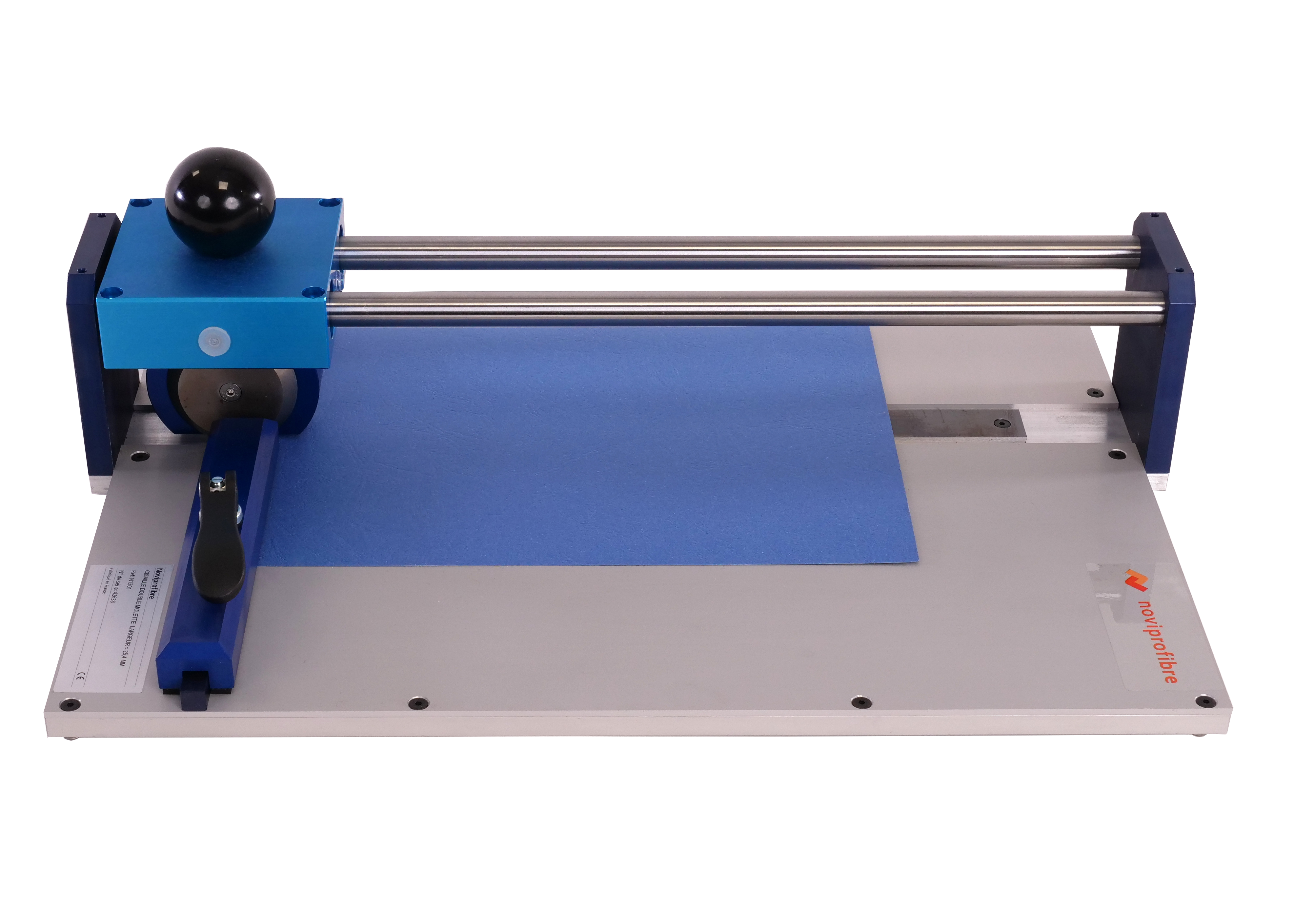

    Strip cutter for the preparation of paper samples for tensile tests according to ISO 1924 and other standards. The support with circular knives slides on two guide bars along a lower knife and cuts one (or optionally two) strips from the positioned paper sheet.



    Technical specifications

    General data
    • Width between 10 mm and 300 mm
    • Maximum length: 350 or 550 mm according to model
    • No risk of cut
    Log in
    No
    Weight and dimensions Packaging
    15 Kg
    350 x 550 x 400 mm (WxDxH)
    Product weight and dimensions
    8 Kg
    290 x 470 x 270 mm (WxDxH)
    Scope of delivery
    • Double wheel cutter
    • Optional pair of jaws
    • Operating manual
    Interested in this product ?
    Do not hesitate to ask for a quote
