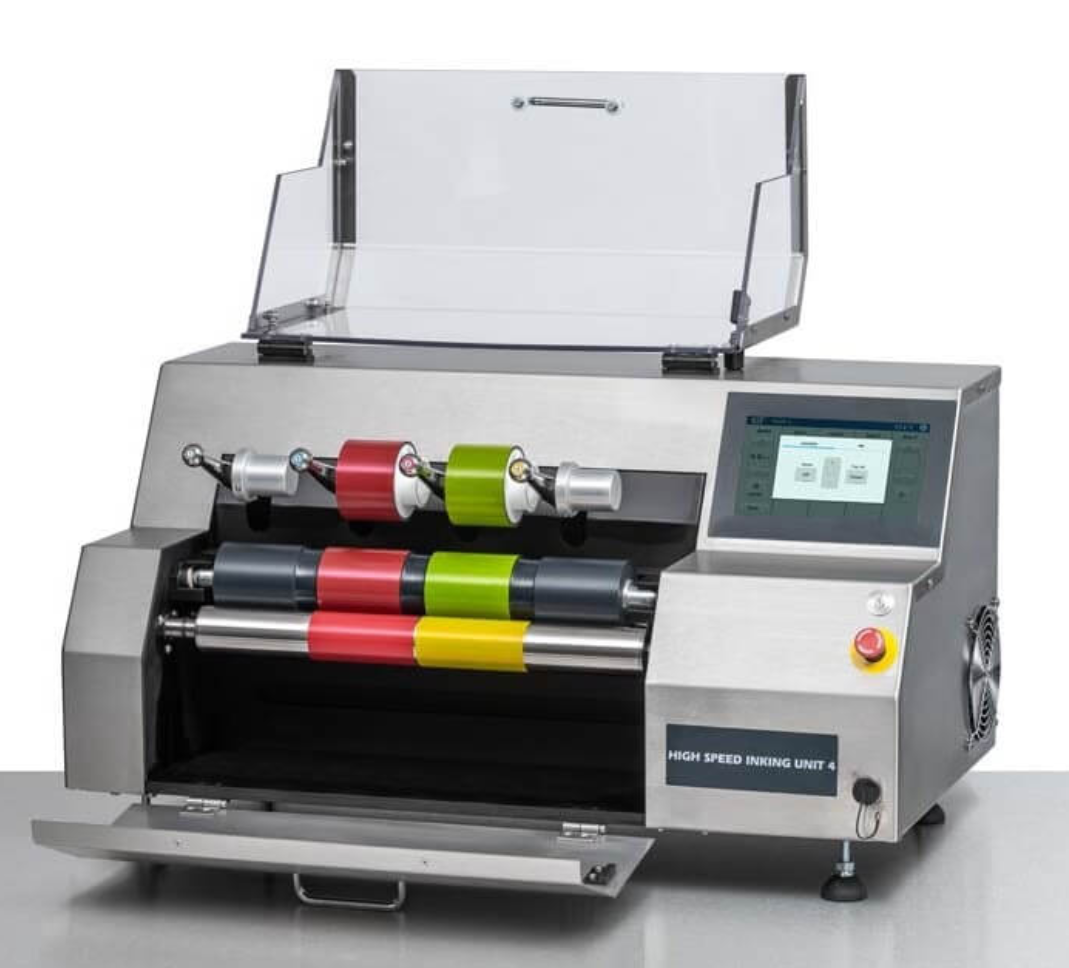

IGT high speed inking unit 4

  •   Made in Europe

Inking unit to apply and distribute ink films of accurate kown, reproducible and even thickness on the printing discs for the IGT printability testers.

  Download the leaflet
  • 446.000.710
  • ISO 2834
  • ISO 2836
  • ISO 2846
  • ISO 3783-2006

    • Product description

    Inking unit to apply and distribute ink films of accurate kown, reproducible and even thickness on the printing discs for the IGT printability testers.

    Technical specifications

    General data
    • Inking speed adjustable between 0.2 and 1.2 m/sec.
    • Adjustable dispensing system between 10 and 300 sec.
    • Upper roll available in 1.2 or 4 sectors.
    • Inking time of the printing disk adjustable from 5 to 200 sec.
    • Inking time adjustable differently for each printing disc.
    • Lifting of automatic printing discs after inking.
    • Possibility to adjust the axes to receive IGT type A discs.
    • Comes with a single body ink pipette.
    • Device delivered with thermostatic bath, it allows to regulate the temperature of the ink at the time of measurement.
    Log in
    115-230V / 50-60 Hz (5 A slow)
    Weight and dimensions Packaging
    On request
    Product weight and dimensions
    55 Kg
    400 x 720 x 440mm
    Interested in this product ?
    Do not hesitate to ask for a quote
