Micrometer for paper

  •   Noviprofibre
  •   Novilog
  •   Made in France

Device used to measure the thickness of a sheet of paper.

  Download the leaflet
  • N1101
  • N1101P
  • ISO 534
  • ISO 12625-3
  • TAPPI T411

    • Product description

    DEVICE DESCRIPTION :

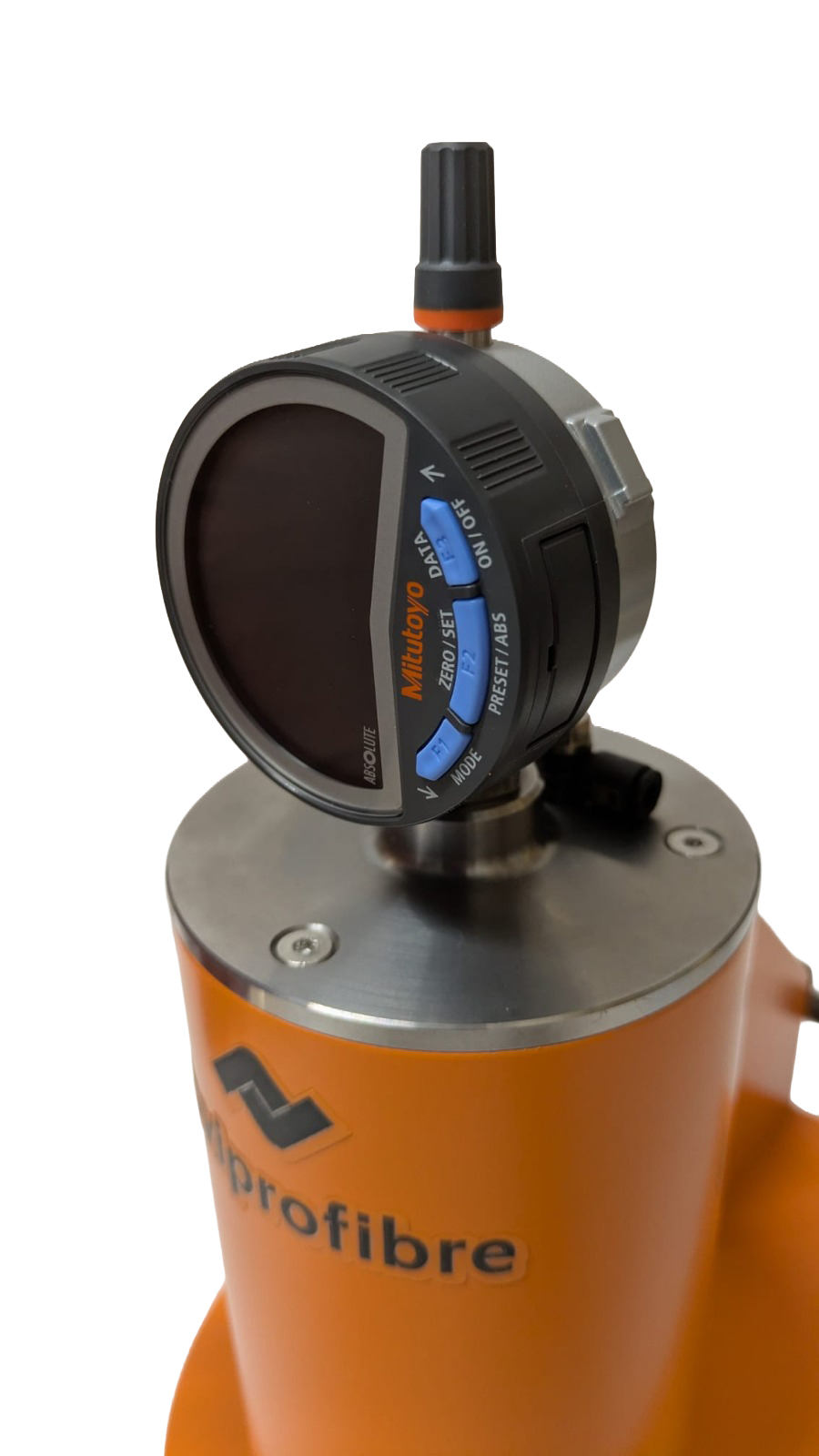

    The robust micrometer is available in either pneumatic or manual configuration. Depending on the model, the device is operated via a hand lever or a pneumatic foot pedal. The descending speed according to standard is set with a throttle. A battery powered digital gauge measurement is mounted on the device for displaying the measurement results.



    TEST DESCRIPTION :
    Depending on configuration, the measuring pin is lifted via the pneumatic foot pedal or manually with the lever mounted on the side. The sample is placed in the measurement area. Then the pedal or lever is released, and the measuring pin lowers at a speed limited by the throttle onto the sample. The digital measurement gauge displays the result of the measurement.

    SPECIFICATIONS :

    • Bound the lowering speed via a throttle
    • Battery operated digital gauge measurement
    • Resolution: 1 μm, reproducibility : ± 2 μm



    MODELS :

    • N 1101 – Manual model : 2 cm² measuring area

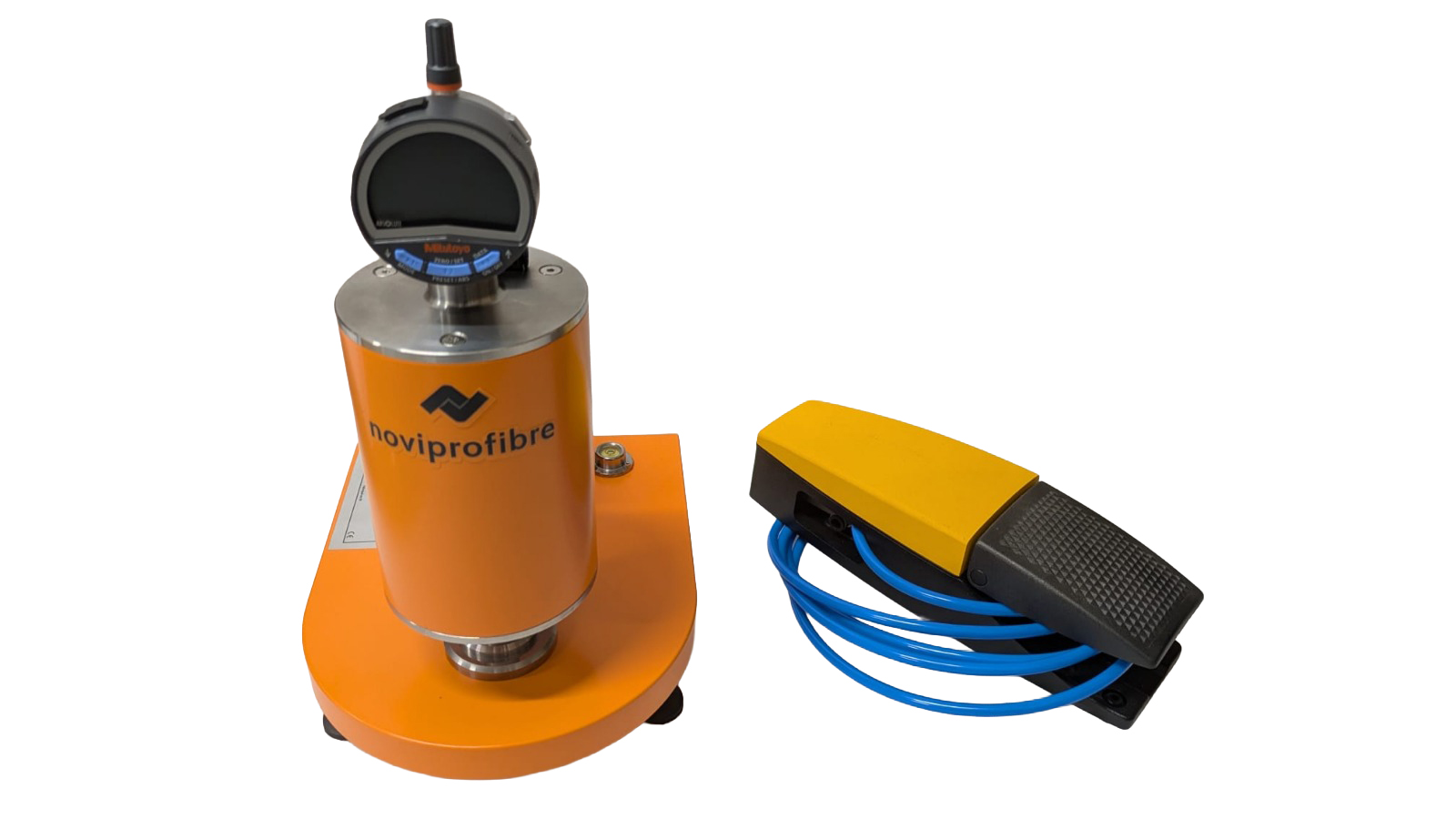

    • N 1101P – Pneumatic model : 2 cm² measuring area

    Technical specifications

    General data
    • Measuring range 0 to 12 mm.
    • Accuracy of measurement: 0.001 mm.
    • Measuring surface: 2 cm².
    • Measuring pressure: 100 kPa.
    Log in
    Compressed air : About 400 Kpa only on the N1101P model
    Weight and dimensions Packaging
    16 Kg
    400 x 400 x 400 mm (WxDxH)
    Product weight and dimensions
    12 Kg
    200 x 250 x 300 mm (WxDxH)
    Scope of delivery
    • One micometer
    • One foot for N1101P model
    • Operating book
