PCD 06

  •   Made in Europe

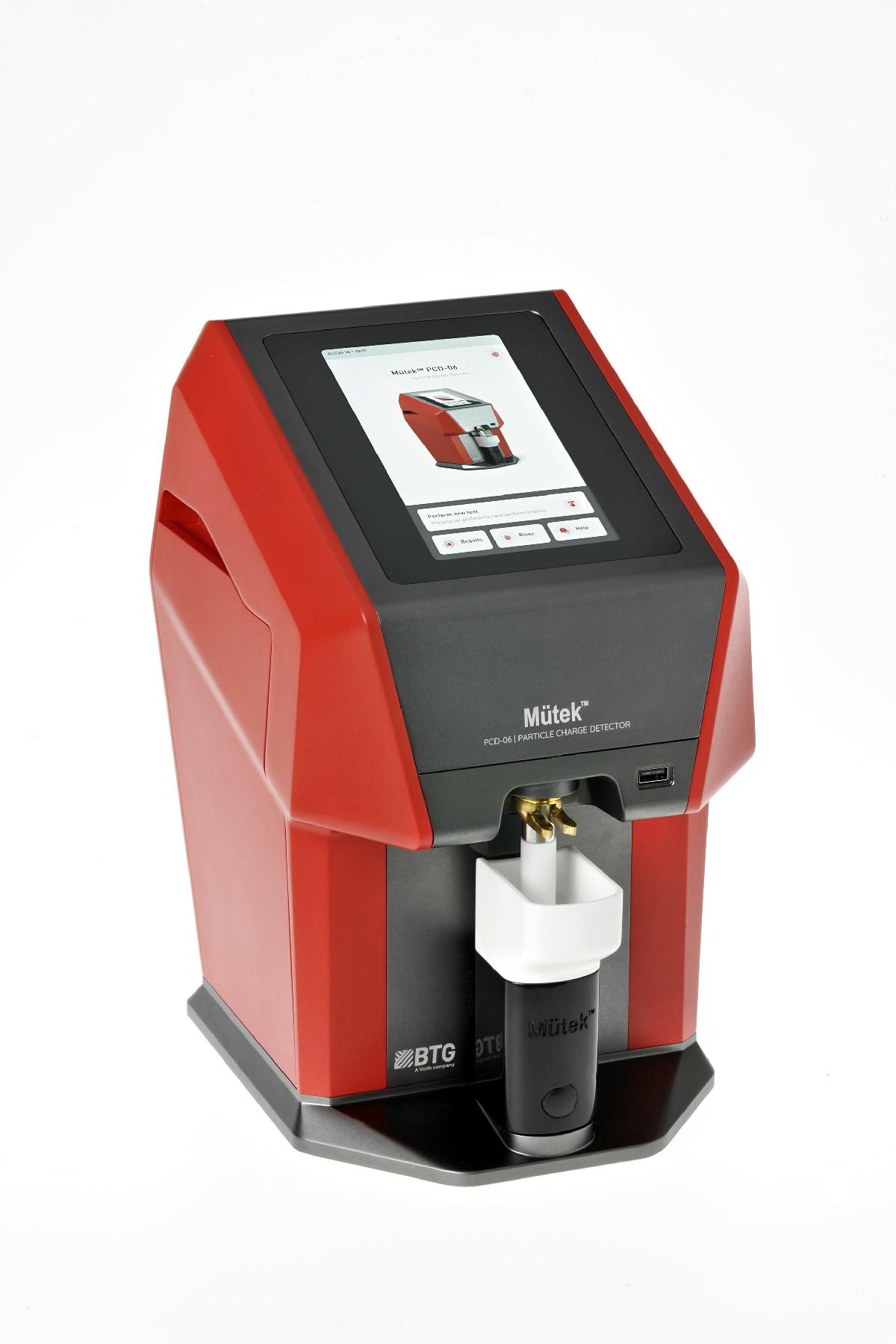

The Mütek™ PCD 06 Particle Charge Detector measures the colloidally dissolved substances in an aqueous sample. Thanks to cartridges with polyelectrolytes solutions and different special titration algorithm make lab life easy and guarantee reproducible results. Optionally, the Mütek™ PCD 06 can be equipped with a pH-electrode.

  Download the leaflet
  • KB2000264
  • KB2000265
  • KB2000266
  • The Mütek™ PCD 06 Particle Charge Detector measures the colloidally dissolved substances in an aqueous sample
  • The Mütek PCD 06 is a true stand-alone lab unit and perfectly suited for the frequent traveller and the newcomer to charge measurement as built-in titration module
  • Optionally, the Mütek™ PCD 06 can be equipped with a pH-electrode

    • Product description

    Three versions of PCD 06 apparatus are available:



    Mütek PCD-06 Light (Ref : KB2000264):
    Lab instrument for quantitative charge determinations of colloidal dissolved matter and particle systems using a polyelectrolyte titration. Light version without dosing pumps. Includes a precision measuring cell with piston, a beaker with screen for filtrating fibre suspensions, a cleaning brush, two 250 ml bottles with 0.001N polyelectrolyte standards (cationic and anionic).



    Mütek PCD-06 Standard (Ref : KB2000265):
    Lab instrument for quantitative charge determinations of colloidal dissolved matter and particle systems using a polyelectrolyte titration. Standard version with 1 dosing pump for automatic titrations. Includes a precision measuring cell with piston, a beaker with screen for filtrating fibre suspensions, a cleaning brush, two 250 ml bottles with 0.001N polyelectrolyte standards (cationic and anionic).



    Mütek PCD-06 Premium (Ref : KB2000266):
    Lab instrument for quantitative charge determinations of colloidal dissolved matter and particle systems using a polyelectrolyte titration. Premium version with 2 dosing pumps for automatic titrations. Includes a precision measuring cell with piston, a beaker with screen for filtrating fibre suspensions, a cleaning brush, two 250 ml bottles with 0.001N polyelectrolyte standards (cationic and anionic).

    Technical specifications

    General data
    • Compact design for easy travelling and fast setup
    • Integrated Help menu
    • Fast measurement
    • Perfect view inside the measuring cell
    • No tube handling required
    • Big 7” Touch display
    • Integrated titrant bottles can remain installed during transport
    • New piston catch which is easy to install, but still mechanically tight for accurate measurement
    • Intuitive Software
    • Ergonomic to work with due to easy cell handling enough space around as well to orientation of display
    • Result handling direct in the device or to Export to a pen drive
    Log in
    100 -240 VAC / 60 Hz
    Product weight and dimensions
    6.4 Kg
    224 x 232 x 335 mm (W x D xH)
    Scope of delivery
    • PCD 06 apparatus
    • A precision measuring cell with piston
    • A beaker with screen for filtrating fibre suspensions
    • A cleaning brush
    • Two cartridges with polyelectrolyte standards (Polydadmac 1.10-3 N 250 ml and PesNa 1.10-3 N 250 ml)
    Interested in this product ?
    Do not hesitate to ask for a quote
